Introduction to Elliptical Louvers

Elliptical louvers have emerged as a key element in modern architectural façades, offering an ideal balance between aesthetics, functionality, and energy efficiency. Unlike traditional flat or linear louvers, elliptical louvers feature a curved, teardrop-like profile that optimizes both airflow and sunlight control. They are widely used in commercial, residential, and office buildings, particularly where glass façades dominate. The unique geometry of elliptical louvers ensures controlled daylight penetration, reduces glare, and improves natural ventilation, all while providing a visually striking element to the building exterior.

Energy Efficiency and Modern Façade Design with Elliptical Louvers

Types of Elliptical Louvers

Elliptical louvers can be broadly categorized into two main types: fixed and movable. Each type has specific advantages and applications.

Fixed Elliptical Louvers

Fixed louvers are installed at a predetermined angle, providing continuous shading and ventilation control. They are commonly used in façades where flexibility is not required, such as office buildings with consistent sun exposure. Key features include:

  • Durability and low maintenance due to absence of moving parts
  • Efficient shading that reduces solar heat gain and glare
  • Cost-effectiveness in terms of installation and long-term upkeep
  • Integration with modern façade designs, creating uniform visual rhythm
Movable Elliptical Louvers

Movable louvers allow the angle of the blades to be adjusted manually or automatically in response to sun position, weather conditions, or user preferences. They are ideal for high-performance buildings and projects emphasizing sustainability. Key advantages include:

  • Optimal energy savings by adapting to seasonal and daily sun patterns
  • Enhanced indoor comfort through dynamic control of daylight and airflow
  • Integration with smart building management systems for automated operation
  • Greater architectural flexibility, allowing façades to transform visually

Energy Efficiency Benefits

The use of elliptical louvers significantly impacts a building’s energy performance. By controlling sunlight and optimizing natural ventilation, they reduce the reliance on HVAC systems and artificial lighting. The curved profile allows diffused sunlight to enter while preventing direct solar heat gain, which reduces cooling loads in summer. In winter, angled louvers can allow low-angle sunlight to provide passive heating, reducing the need for mechanical heating.

Quantifying Energy Savings

Studies indicate that buildings with properly designed elliptical louvers can reduce cooling energy consumption by up to 20–30% compared to glass façades without shading. Movable louvers provide even greater savings, potentially exceeding 35% in regions with intense solar radiation. These reductions are achieved through:

  • Minimizing direct solar heat gain
  • Maximizing daylighting to reduce electric lighting use
  • Enhancing airflow for natural ventilation, decreasing mechanical cooling requirements

Architectural and Aesthetic Advantages

Beyond energy efficiency, elliptical louvers contribute significantly to the visual identity of a building. Their smooth, curved profiles create dynamic patterns of light and shadow, adding depth and texture to flat façades. The louvers can be designed in a variety of colors, finishes, and spacing arrangements to complement the building’s architectural style. Popular applications include:

  • Commercial towers and office buildings, where façades are mostly glass
  • Luxury residential buildings seeking modern, elegant exterior aesthetics
  • Museums and cultural centers where artistic façade elements are essential
  • Educational and institutional buildings emphasizing both design and sustainability

Material Selection and Durability

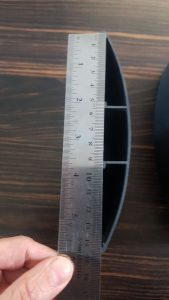

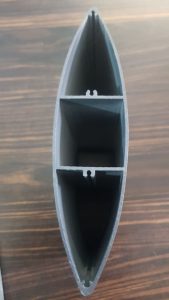

Elliptical louvers are typically made from extruded aluminum due to its lightweight, high strength, and corrosion resistance. Aluminum can also be powder-coated or anodized to improve durability and provide a wide range of color options. In high-humidity or coastal environments, additional coatings can prevent corrosion. Material considerations also influence energy performance, as reflective surfaces can reduce solar absorption while darker matte finishes may be preferred for visual contrast.

Integration with Glass Façades

Modern buildings increasingly feature curtain wall systems with large expanses of glass. While visually appealing, such designs can result in overheating and glare. Elliptical louvers are an effective solution, allowing buildings to maintain transparency while improving comfort. For example:

  • Horizontal elliptical louvers are ideal for southern façades, blocking high-angle summer sun
  • Vertical elliptical louvers are suitable for eastern and western façades, mitigating low-angle morning and evening sunlight
  • Combination layouts (angled and overlapping louvers) create unique visual effects while optimizing energy performance

Smart Building Integration

In high-performance projects, movable elliptical louvers can be integrated with building management systems (BMS) to respond dynamically to sunlight intensity, temperature, and occupancy patterns. Automated control provides precise management of daylight, glare, and airflow. Additionally, louvers can be programmed for seasonal adjustments, further reducing energy demand and enhancing user comfort.

Case Studies

Several landmark projects showcase the effectiveness of elliptical louvers:

  • Commercial Office Tower: A 25-story office building in Dubai used horizontal movable louvers to reduce cooling loads by 32%, while creating a visually distinctive façade.
  • Residential Complex: In Singapore, a luxury apartment complex implemented fixed elliptical louvers combined with double-glazed glass, improving indoor comfort and reducing energy consumption by 18% annually.
  • University Library: A library in California incorporated vertical louvers along its southern and western façades, effectively reducing glare and promoting natural ventilation in study spaces.

Installation and Maintenance Considerations

Proper installation is crucial to the performance of elliptical louvers. Designers must account for:

  • Optimal blade angles based on geographic orientation and sun path
  • Durable mounting systems to withstand wind loads and seismic conditions
  • Accessibility for cleaning and maintenance, particularly for movable systems
  • Coordination with façade contractors to ensure seamless integration with curtain walls

Regular maintenance, including lubrication of moving parts and inspection of coatings, ensures long-term durability and consistent energy performance.

Environmental and Economic Impact

Buildings equipped with elliptical louvers contribute to sustainable architecture in several ways. Energy reduction decreases carbon emissions, while the use of recyclable aluminum minimizes environmental impact. Economically, the upfront investment in louvers is offset by reduced energy bills, enhanced building value, and potential LEED or BREEAM certifications. Over a 20-year building lifespan, energy savings and operational efficiency gains can far exceed initial costs.

Design Flexibility and Customization

Elliptical louvers offer extensive design flexibility. Architects can vary blade spacing, orientation, length, and curvature to meet both functional and aesthetic goals. Additionally, color selection and finish can complement the surrounding architecture, branding, or urban context. This flexibility ensures that each building can achieve a unique identity while maintaining high performance.

Conclusion

Elliptical louvers represent a harmonious integration of architectural beauty, functionality, and sustainability. Their ability to reduce energy consumption, optimize daylighting, and improve ventilation makes them indispensable in modern building design. By carefully selecting between fixed or movable systems, considering material and finish, and integrating smart control technologies, architects and engineers can achieve façades that are both visually stunning and energy-efficient. As urban environments continue to demand sustainable and attractive buildings, elliptical louvers will remain a key solution for façades worldwide.
