Introduction

Comprehensive Guide to Vertical and Horizontal Mullion Profiles in Curtain Wall Systems Modern architecture heavily relies on glass façades to achieve transparency, elegance, and energy efficiency. Behind the beauty of these façades lies a critical structural element: mullion profiles, often referred to as “lamel” in some markets. These profiles, categorized into vertical mullions and horizontal mullions, form the backbone of curtain wall systems. They not only support the glass panels but also play an essential role in the aesthetics, strength, and functionality of the entire façade. In this article, we will explore in detail the purpose, differences, advantages, and installation considerations of vertical and horizontal mullion profiles, providing a comprehensive overview for architects, contractors, and developers.

The Role of Mullions in Curtain Wall Design

Mullions are structural aluminum profiles designed to hold and distribute loads across the curtain wall. They provide stability against wind, rain, and seismic activities while maintaining a sleek and seamless appearance. Vertical mullions act as the main structural support connected to the building’s framework, whereas horizontal mullions function as intermediate connectors that distribute loads to vertical profiles and accommodate the glass panels.

• Load Distribution: They transfer the weight of the glass to the main structure.
• Sealing and Insulation: They help integrate sealing systems that protect against air and water leakage.
• Aesthetic Contribution: Their arrangement influences the visual rhythm of the façade.

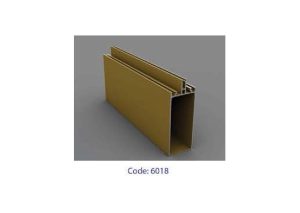

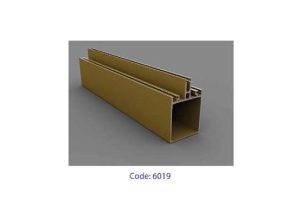

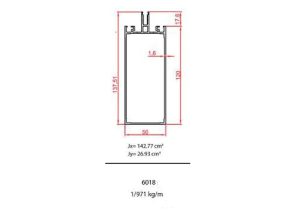

Vertical Mullion Profiles

Vertical mullions are the primary elements in curtain wall systems. They run continuously from floor to floor, directly anchored to the building’s main structure. Due to their orientation, vertical mullions carry the majority of wind loads and act as the skeleton of the façade.

Key Characteristics:

• High structural strength to bear vertical and lateral loads.
• Ability to integrate brackets for horizontal mullions and transoms.
• Serve as visual lines that emphasize the height and elegance of tall buildings.

For high-rise buildings, vertical mullions are often designed with reinforced aluminum alloys or thermal break technologies to balance strength with energy efficiency.

Horizontal Mullion Profiles

Horizontal mullions, also called transoms, intersect with vertical mullions and form the secondary framework of the curtain wall. Their primary function is to support glass panels horizontally and ensure an even load transfer to vertical profiles.

Key Characteristics:

• Provide stability against glass deflection under wind pressure.
• Act as the main seat for glazing installation.
• Create continuous horizontal lines that can visually widen a façade.

While they carry less load than vertical mullions, their precision and correct alignment are essential to the structural integrity of the façade.

Aesthetic Impact of Vertical and Horizontal Mullions

Beyond their structural functions, mullions significantly influence architectural design. Vertical mullions emphasize the height and strength of a building, making towers appear taller and more elegant. In contrast, horizontal mullions highlight balance and width, which is often ideal for wide commercial centers and modern residential complexes.

Material and Manufacturing Considerations

Mullion profiles are predominantly manufactured from extruded aluminum due to its lightweight, corrosion resistance, and design flexibility. Advanced options include:

• Thermal Break Mullions: Reduce thermal transfer and improve energy efficiency.
• Anodized and Powder-Coated Finishes: Enhance durability and allow for customized color schemes.
• High-Strength Alloys: Provide additional resistance for tall buildings exposed to strong winds.

Installation Considerations

Correct installation of mullions is critical to the long-term performance of curtain walls. Misalignment or poor anchoring can compromise safety and aesthetics.

Steps for Installation:

1. Secure vertical mullions to the building’s structural elements using brackets.
2. Align horizontal mullions carefully with laser tools to avoid deflections.
3. Integrate sealing gaskets and EPDM rubbers to ensure proper waterproofing.
4. Check for thermal expansion allowances to prevent stress on glass panels.

Common Challenges in Mullion Installation

Despite their importance, mullion installation can present several challenges:

• Alignment Issues: Even slight misalignments can cause visual imperfections.
• Load Misdistribution: Improper connection may lead to excessive stress on specific mullions.
• Water Infiltration: Poor sealing can reduce durability and cause damage to interiors.

Technological Advancements in Mullion Profiles

The field of façade engineering has evolved with innovative mullion designs. Modern systems include unitized curtain walls where mullions and glazing are pre-assembled in factories, ensuring higher quality and faster installation. Additionally, hybrid mullion systems with integrated shading devices or photovoltaic cells are becoming popular in sustainable architecture.

Maintenance of Mullion Systems

Like any façade element, mullions require proper maintenance. Regular inspections help detect early signs of corrosion, sealant deterioration, or structural wear.

Maintenance Recommendations:

• Annual inspection of connections and fasteners.
• Cleaning profiles with non-abrasive solutions to preserve finishes.
• Replacing worn-out gaskets and sealants for water tightness.

Case Study: High-Rise Office Tower

In a recently constructed 40-story office tower, architects emphasized vertical mullions to highlight the building’s height. Strong aluminum vertical profiles were paired with slender horizontal mullions, creating a façade that balances strength with elegance. Thermal break technology ensured energy efficiency, reducing cooling costs by 20%.

Future Trends in Mullion Profiles

The future of mullion profiles is tied to the demand for sustainability and smart façades. Trends include:

• Integration of solar panels within mullion designs.
• Advanced coatings for self-cleaning surfaces.
• Use of recycled aluminum for eco-friendly projects.

Conclusion

Vertical and horizontal mullion profiles are far more than just structural components. They embody the fusion of engineering, design, and sustainability in modern architecture. By understanding their roles, differences, and proper installation methods, architects and contractors can create façades that are not only strong and reliable but also aesthetically inspiring. As technology continues to advance, mullions will play an even greater role in shaping the skylines of tomorrow’s cities.
